The 13 Steps of Solar Panel Cleaning

The 13 steps of solar panel cleaning have been created to help cleaners compartmentalize the solar panel cleaning process. Using this foundation in your day-to-day decision-making process facilitates operations and helps to ensure quality. The 13 steps in solar panel cleaning also facilitate training and service quality.

kaa Ix3klpsWKgUzbwiGDWOdNeUnS Olg9xrHg8x9ql D0AXpy1a0Y17FGiDLWH NxADtf7OYGT Xk585BsvK9w7ldlB3QuXWgKfRdKL3chkITG2HfQMH3KMkbCsmiRL1WSRdK2uWHuE6WrJdYVarhI

Time and Circumstance

Understand the process, make better decisions, and grow your business.

  1. Safety – Before we get started, how can we ensure operator and bystander safety? Let’s be “safe-centric”. https://soilar.tech/chapter/chapter-3-the-solution/safety-for-solar-panel-cleaners/
  2. PV Site Damage Control – Before we get started, how can we ensure that we will not damage the PV site? Thermal shock ..etc
  3. Arrival / Setup – Once we arrive at the job site with our equipment, how do we get set up? What resources do we need to get to work? How does the machinery we have performed in this stage?
  4. Transportation – How do we move the equipment from the company warehouse or home base to the job site and vice versa?
  5. Water Treatment – How do we treat our water? Do we do this at the job site or do we do it at a company warehouse and then transport the treated water?
  6. Water Management – How do we get the water from the source to the machinery and solar panels? How do we handle the long hoses and what tools can we use to make this handling easier and more efficient? Do we need to refill the source?
  7. Array (Row) Cleaning – Once we get the equipment setup and the machinery is on the array, how well do we perform the cleaning?
    1. How many trips to clean the array?
    2. Water consumption per trip?
  8. Gap Management – It is common that solar installations to have gaps within the array or row. How does the solar panel cleaning equipment cross that gap and will it be a problem? Gaps can be problematic and there are workarounds.
  9. Row to Row (Moving from one array to another) – How do we move the machinery from one row to the next? Rows/arrays are constant in every solar panel cleaning job and each installation requires that you solve the problem in a tailored way.
  10. Equipment Power Management – How is our equipment powered and how can we ensure constant and efficient power so we do not have to stop working?
  11. Departure (Basically the same as Arrival / Setup) but not always the same.
  12. Equipment Maintenance Moment – Before putting our equipment away, let’s clean it, fix it, calibrate it and test the PPE to make sure it is safe for the next job.
  13. Transportation – Time to go home or to the next job site!
Safety

A big component of being a successful solar panel cleaning company is accomplishing operator and bystander safety. We define this stage as defining all safety measures, processes, and resources that need to be implemented to guarantee that the operator and the people in the area are guaranteed safety.

Operator Safety includes

Keeping the operator safe when he/she works.

Keeping the operator safe from physical injuries due to manipulating heavy machinery.

Keeping the operator safe from contact with environments where there is electricity

Compliance with US Occupational Safety Health Administration (OSHA) guidelines

Bystander Safety

Operators always work when other people are around and we have to guarantee their safety. We need to keep bystanders safe from “Falling equipment” or other situations that might come up.

Operator Checklist
  • Safety training
  • Aerial lifts
  • Roofing Safety
  • Define protocols
  • Equipment training
  • How to manipulate the equipment safely?
  • Equipment weight limits and OSHA – Occupational Safety Health Administration Guidelines – The United States Department of Labor (OSHA) states “Lifting loads heavier than about 50 pounds will increase the risk of injury”.  USA – Men and Women Lifting Limits – 22.68 kg / 50 lbs.
  • Roofing Safety protocols
  • Battery run-out sensors
  • Electrical Training
  • How do identify loose wiring and unsafe installations?
  • How to fix loose wiring and ensure safety to start cleaning?
  • Gear
  • What kind of clothes should be worn to avoid being electrocuted?
  • How can I signal the aerial lift equipment to avoid an accident?
  • What extra measures should I take when cleaning at night?
  • Extensive Safety Training
  • Roofing Safety
  • Aerial Lift Safety
  • Machine manipulation safety
  • First Aid Kit
  • Safety Glasses
  • Study the installation via Google Earth prior to cleaning
  • Preparation for each specific cleaning job
  • Electrical tester
  • Electrical Tape, Flame Retardant Indoor Outdoor High-Temperature Resistance Electric Tape, Premium Black Waterproof Tape
  • Operator uniform designed for electrical safety
  • Articulated Aerial lift
  • Roofing Fall Protection kit (harness etc)
  • Reflective Orange cones
  • Hydraulic Scissor lift
  • Communication between operators
  • Sunscreen
  • Food, Bathroom, Shade break
  • Night Cleaning
  • Light  for cleaners
  • Light for working area

Don’t ever do this.

MwuuE7YWROve6QJTJ UcVjpVjM7TMGwn22vKFBtS4bhXdLZ2adxtMqaFmK8FZ1yYTwki7KrKvzaiBsdH4 pif
Bystander Safety
  • How can my equipment hurt someone?
  • Rooftop Cleaning
  • Edge Detection technology / Fall protection technology.
  • What happens if my operator gets distracted
  • Bystander Safety training
  • Aerial lifts
  • Fall Protection Gear
  • Equipment training
  • Define protocols
  • How can I avoid accidents – having my equipment run into someone or falling on someone?
  • How can I signal long hoses and other equipment so bystanders can them?
  • Edge Detection / Fall protection technology in the case you are cleaning with solar panel cleaning robots
  • “Transportation hook / Ramp in the case you are cleaning with solar panel cleaning robots
  • Getting the robot from the lift to the rooftop”
  • Reflective Orange cones
  • Whistle or a microphone to call attention to bystanders who may be at risk of danger

Edge Detection Technology

Lifting and Discrimination

“The perception that men are stronger than women is a broad generalization with many exceptions in real life. However, the World Health Organization, in a paper on gender and health at work, notes that the lifting strength of the average woman is approximately 50 percent that of the average man. However, the American Bar Association, in a paper on workplace law, points out that a company seeking to hire only strong young men for a heavy-lifting job would be committing illegal discrimination. It is legal to specify that a job requires employees to regularly lift a particular amount of weight, but it is not legal to assume that only men would be capable of doing so.”

Source: https://work.chron.com/laws-gender-differences-lifting-workplace-28301.html

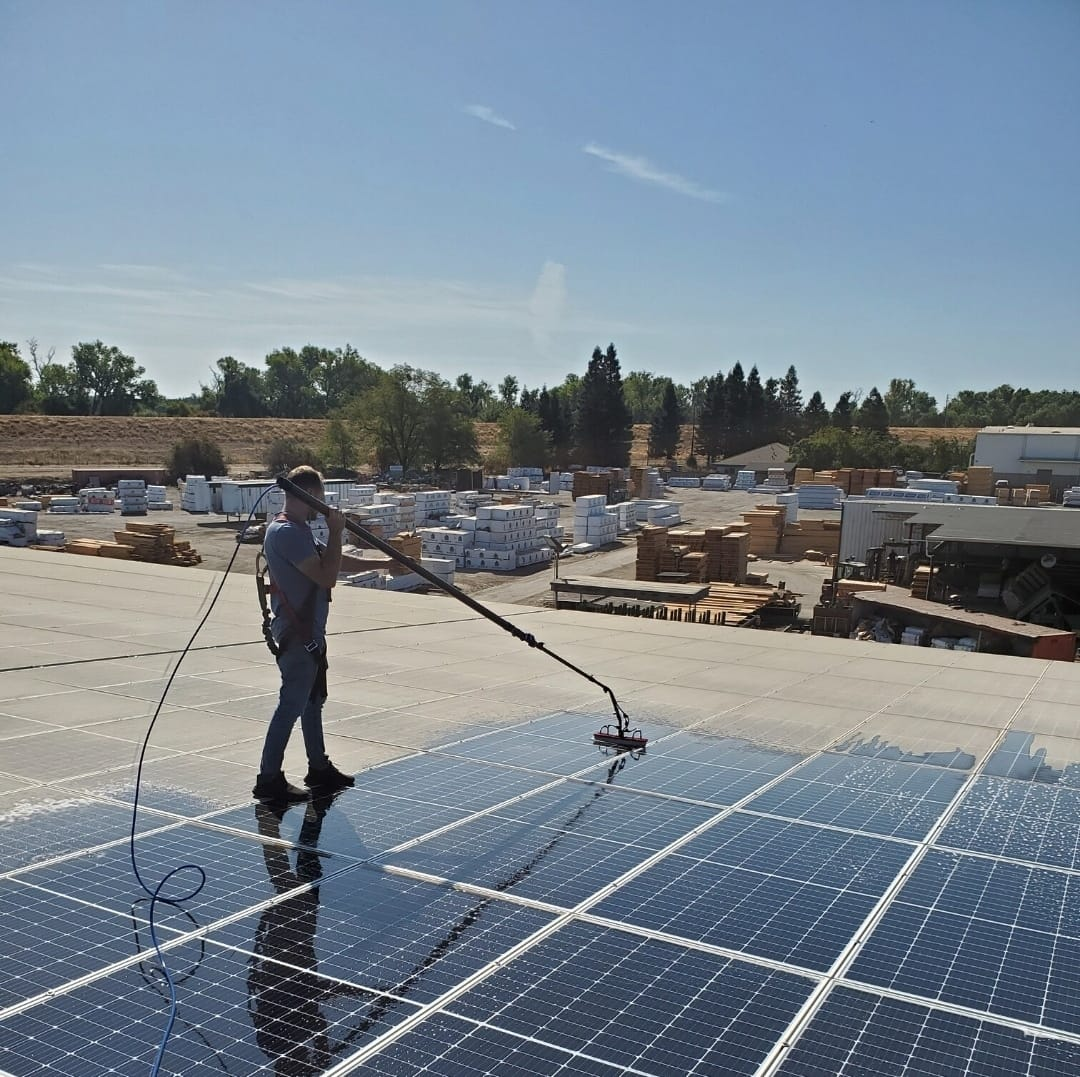

Roofing Safety – Opinions in the industry

Rooftop safety is extremely important and not easy to accomplish. OSHA 30 is a good start but so much of the important information is not published. We recommend taking multiple safety courses. The information below is just a small sample of the things you need to know.

  • OSHA 30
  • https://www.osha.gov/sites/default/files/publications/OSHA3755.pdf
  • CE523: Residential/Commercial Roof-Mounted PV Installation Safety
  • Roofing Industry Fall Protection From A to Z
  • Grant number – H-23536-12-60-F-17 OSHA
  • Roofing Construction Course
  • https://www.oshaeducationcenter.com/osha-30-hour-training/
  • Employers must certify that workers have been trained by documenting it in accord with 29 CFR 1926.503(b) – Certification of Training
  • Information that is not in these courses can be found on the Solar Panel Cleaning Friends Facebook group
  • Experienced solar panel cleaning companies share their knowledge with the group
  • The mount is perfectly ok to tie off too (this is coming from personal use, and my background, nothing official)That’s what I use all the time. People need to remember that we are using a fall arrest system, we are not repelling. The biggest safety thing is you have to make sure to chase your line and not to have too much excess rope out.

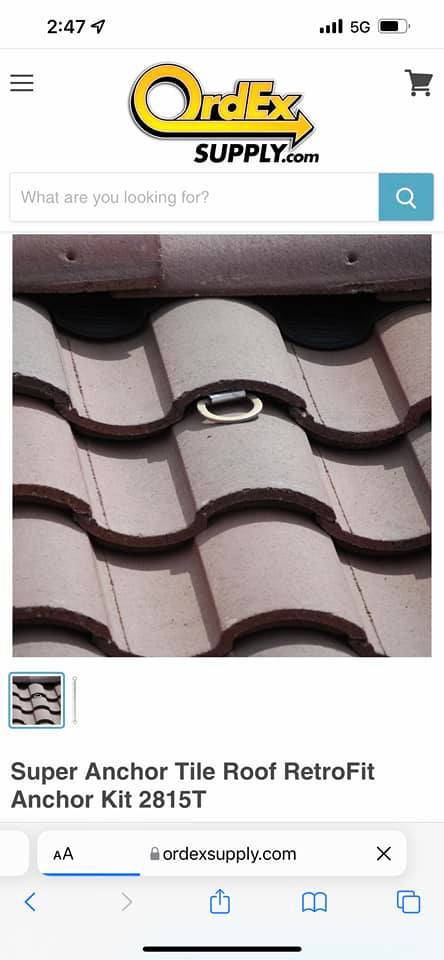

  • How do you tie off on a Spanish tile roof?
  • it really depends on how the roof is built. A lot of the time you can remove a tile and anchor off the trust.

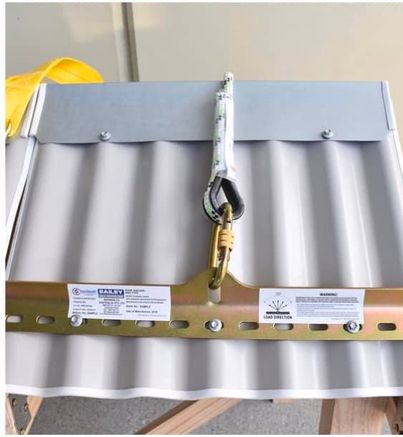

  • If you service the site multiple times a year install one of these. ⇒
  • How does drilling into customers’ roofs affect your license status and/or insurance? Please know that nothing beats safety BUT once you start putting holes in people’s roofs A LOT of changes. Any advice when it comes to that?
  • Our insurance covers roof penetrations, but we do not provide a water-tight warranty and never had any issues with insurance. Not sure how or why it would affect our GC license if we do everything up to code.
  • I would assume any company who writes your insurance would understand you need to follow federal law and adequately tie off when working on the roof.
  • We show the customer what we install and why we install it and have it as a line item on the invoice. Never had one customer even question it.
  • If installed right, you should never have a problem with leaks.
  • Also, most of the time you nail and not drill into the roof.
cwiil7yTNgjBx94e4VMmDWiN99MOi2sKnhaM9go IVwphjFELQzr1 1qmrdY aw5uRqVrx7coIc24hO5MJvNyAnNARBHpvVMvhddveVMtB0DS N5cpcBh
O1YebVO7sVfiF5thD6P7eP7n8t2yzn6zJncWdPOLRgH6Eo6BfDnVD1bcXWuCVWMG7tT7LbsNjmAHeKuWAiFU42i uWX6baZaZCNq zLEV
fUsRS6pEDbd5lXkx5ZYhPEi q7x1Mlf9wIkZQ8UH2tIFRFNhgLKW3aVbfAiZ0h0VXizYG4uEFW9bLL9Er 1vDWXPhsXJso5KMMu MmHfR3MjI5 aRIBynSPBmvEQheQQphd0zlJXM4wZ1ewaezbv4 s
4EUZXp0M 7SsjtHG9B7TpWRcXESRbwwQEsTuvmTHpvMWeUZQeZoRsEzm867thnjaCt2DKHW6UI0UM5yjCjFX33pmLhd8DwnwV9wrgMTbwOn3I 0yB31JFSbbN FSd7ErRACRaInWb4vRC7Zllt7s2mw
Rooftop Solar Panel Cleaning Safety Course
Solar Panel Cleaning Safety Partner 1
PV Site Damage Control
  • How can our operator and equipment damage our client’s solar panels?
  • What can we do to avoid this?
  • How can we avoid accidents at the site?
  • How can we ensure keeping our client’s PV site intact?
  • Does cleaning at night increment the probability of PV asset damage?

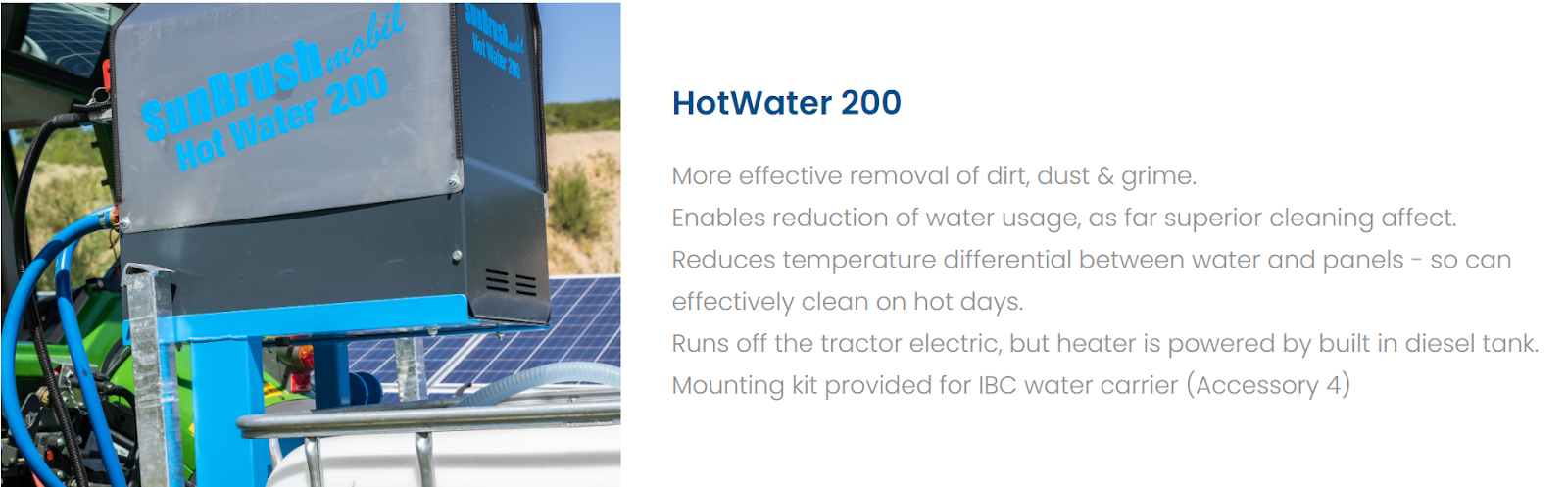

  • Thermal shock several damages the panels. Should I clean with heated water if I am cleaning when it is hot?

hW0He8Q3flP3w6uKstAC7NjDnzb0yGVjl j 7sZJRl6GLH qiRZcCCVYh3BNpYBGJbWBa8dykT3O4lalIecWkhbz2u8c1ledJK1ikEBLvNUJ7XQcCXJKxZg duvEEr2s9RoqjLffw6LSHzN6rcAgmqoSource: https://www.sunbrush-usa.com/accessories

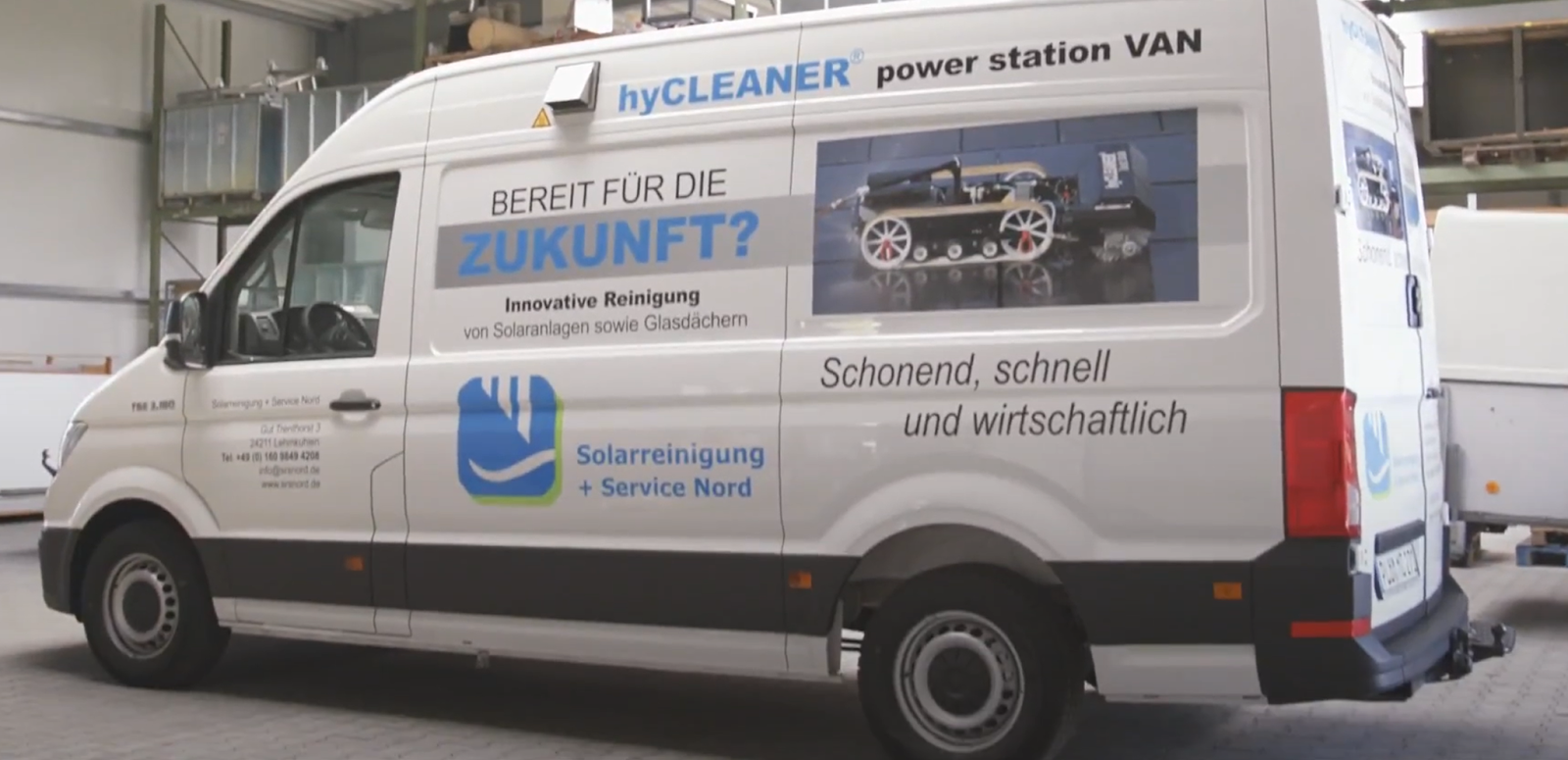

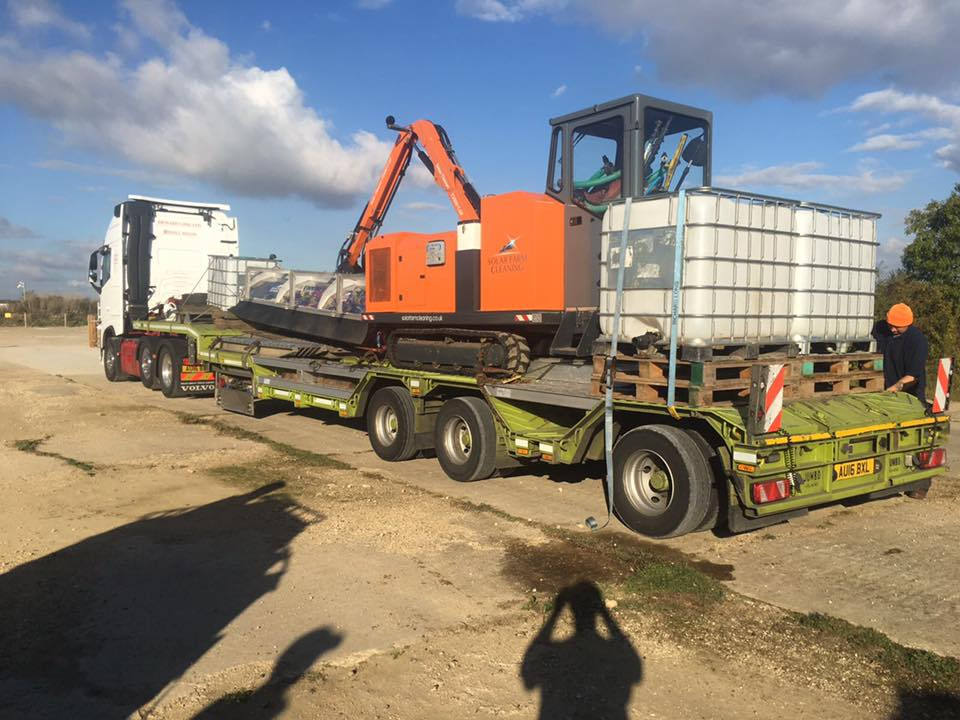

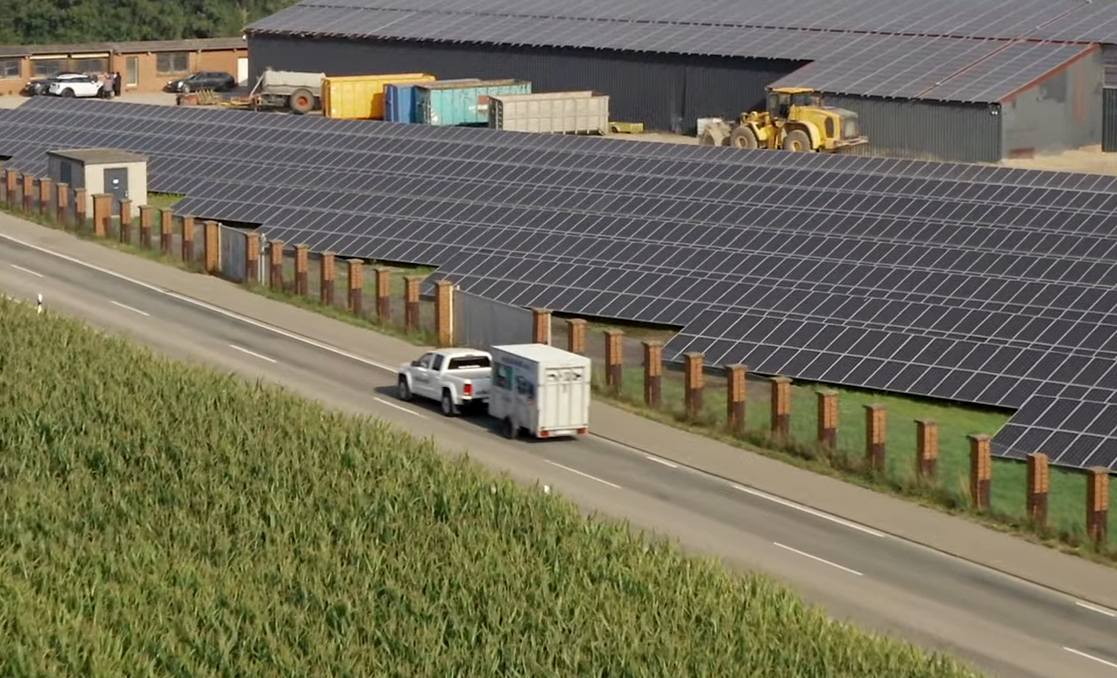

Transportation
  • How can we move the equipment from the home base to the job site and back again?
  • In what condition are the roads and can our vehicle make it to the job site with ease?
  • What kind of skilled labor do I need to move the equipment?
  • What kind of driver’s license does the person need to have?
  • How difficult is it to get these kinds of drivers?
  • What should be my source for this kind of personnel?
  • What are the hourly wages?
  • Are unions an issue?
Y30MD6hdOIsYkOS8PDwUCg Rvje9hiMrKBIhsQirDAJirookT8GxVzAQLnVHtL22G2J
xwVku2I6 qpMbznHQguXp1zpFa4PRTLZAluUXmKXmKFYE45
EZtPNdKgyCeIw62NB6UPlu6ffig4pUwgg8ibxDRJeV BY0r4tXu47e2 kvl704jYveJbavfO6dXDfcfKRGS3z5bFBsXHZreYdikmW6nvY8lKswVpg oVarW0fQLcflFuzlfMHH9ONFk50HWvqnBVItw
h1TpEFfx1XCJ6pR qvPKj8dnLzkTxv pgH5E2kWWWynP9TClCsiFvuNmded21UgaPiqS7DjHmbydrkUL0Hf18aZ3SMn or5BtX51gmA9FkuWkFgaPCgiaMeQkY CzFPr 4

Source: https://www.facebook.com/solarfarmcleaning

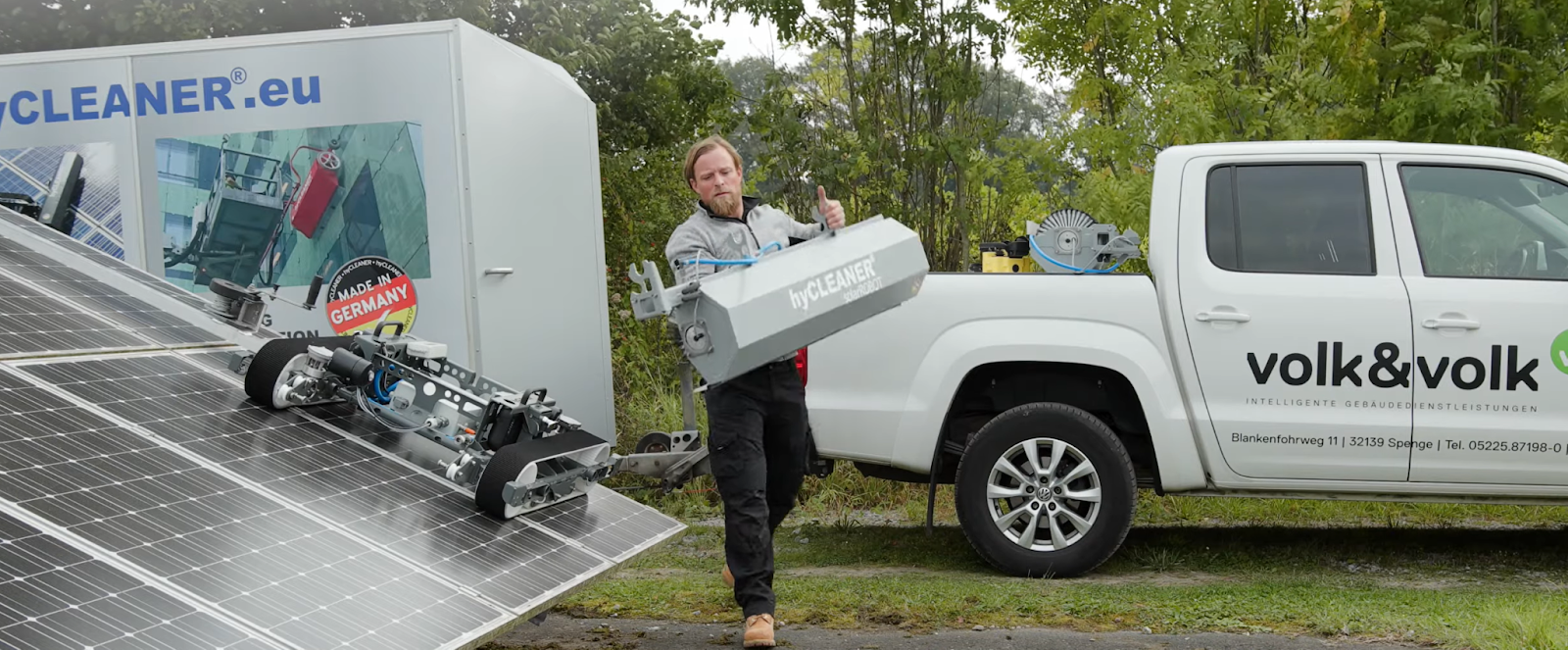

Source: https://hycleaner.eu/en/

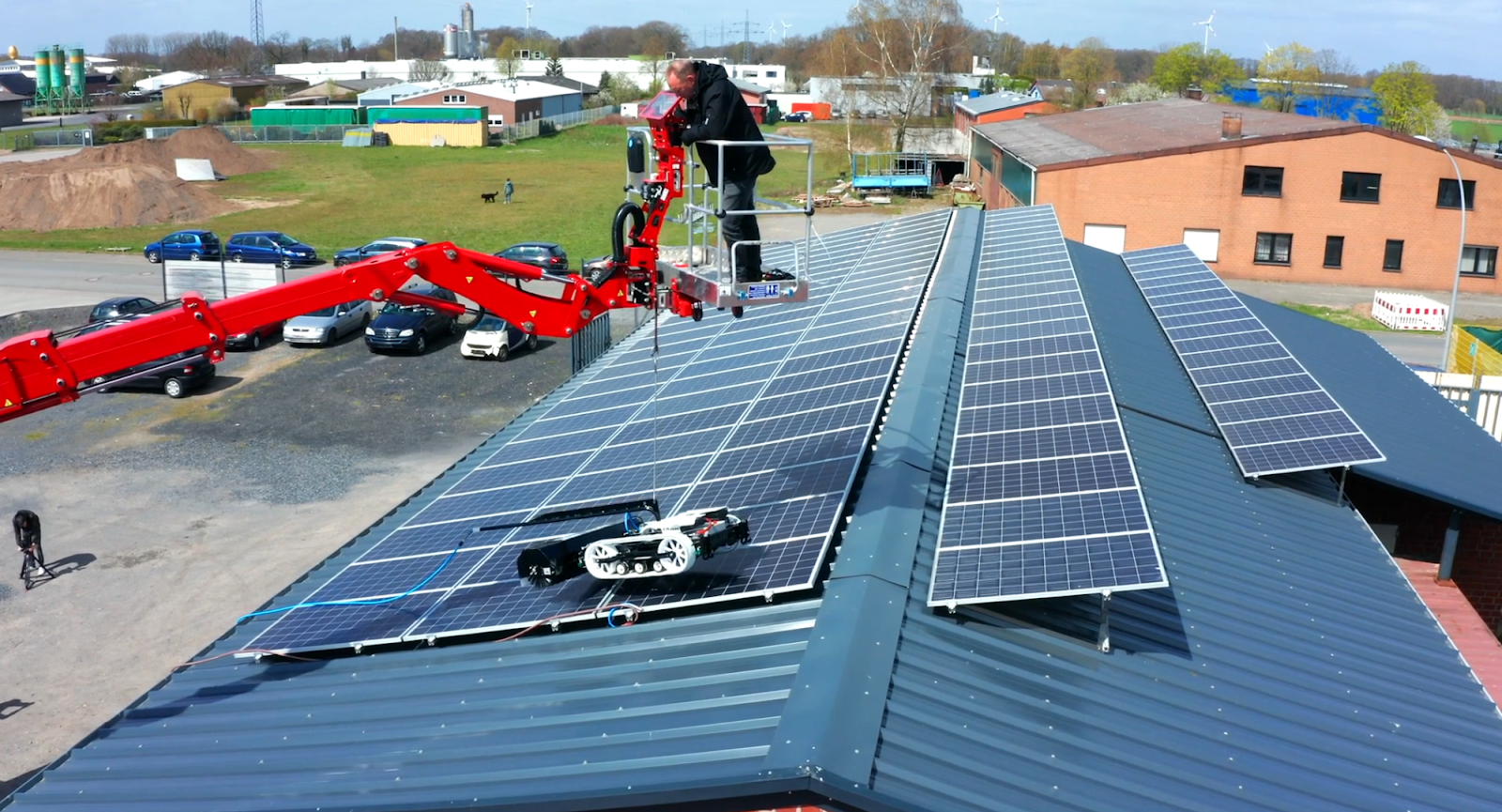

Arrival / Setup
  • What are my options for getting the equipment from the van, truck, or flatbed to the solar panels?
  • What kind of equipment do I need to move the equipment?
  • How many people do I need to get get the setup completed?

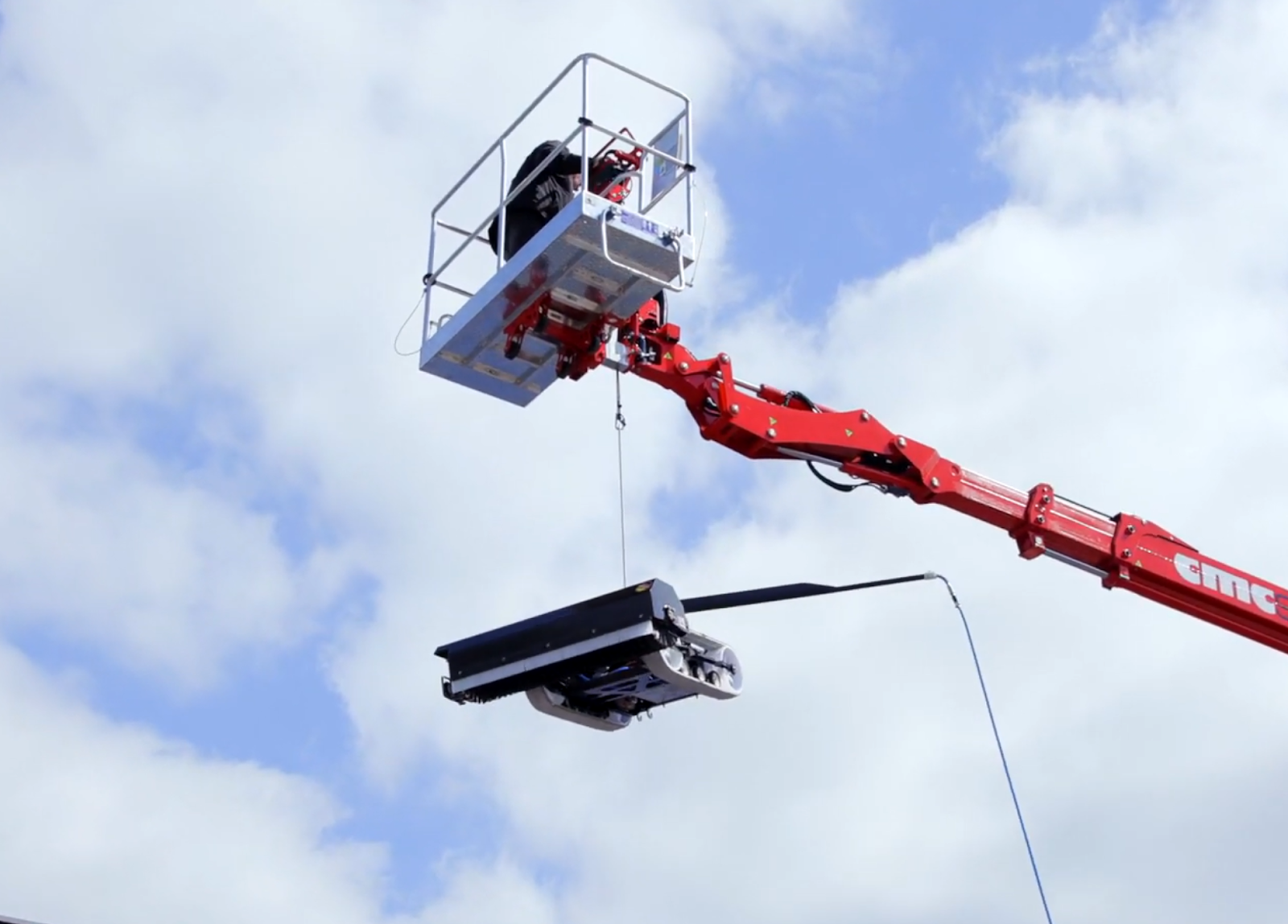

  • Do I need an aerial lift?
  • Does the aerial equipment reach all the solar panels?
  • Is the road wide enough if I am using a tractor brush system?
  • Is the road wide enough for an aerial lift?
ufVGz60OynPNOV4QxAL7JWTIBjQg8Xrc n3nrFxasBtgbXRxUohtIoXeqcdckOzvNvbJbV

Source: Grynwork.com

tr vDiE3ejFF9n25pZY6NpdEc4KGagQ9 vkCHvkacUxmTWV rrP4wo5DScEbrbLzyrIMBYytMXGzqu7varQw
alXdy6APg9m9zmyWnZ5BR JRcJV7EqVxlp4JvcgIY0E O0HidlogjbC6

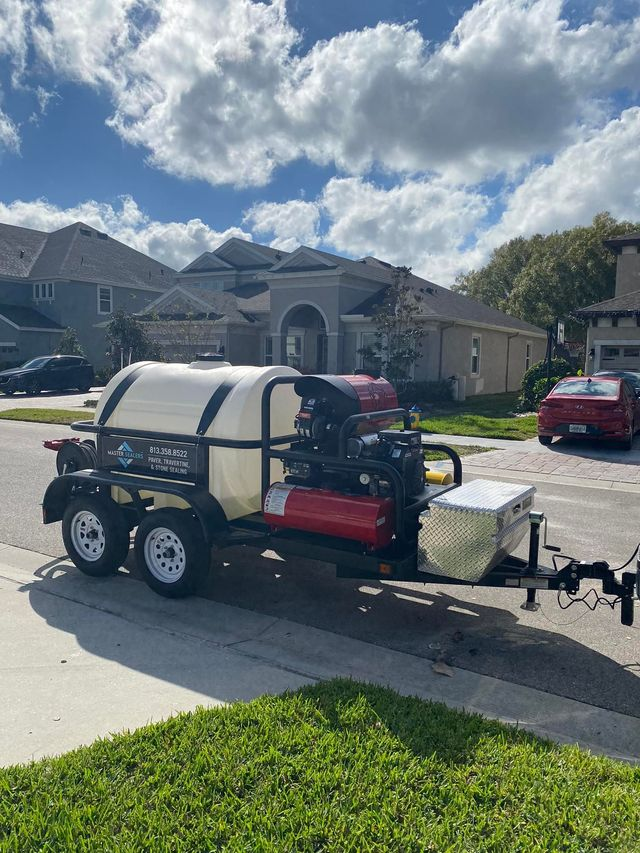

Water Treatment

Water is rarely available on-site and solar panel cleaning should be done with deionized water or osmotic water. Bringing this treated water to the site is an expensive process and water should not be wasted.

  • Do I treat onsite?
  • Do I treat offsite and transport the treated water?
  • What water treatment is ideal?
  • What water treatment equipment do I need?
  • How long does it take to treat the water?
  • How expensive is the treated water?
  • Did I include this cost in my bidding?
  • Should I test my water with a TDS monitor?
3.2.2.6 Water Management

How do we get the water from the source to the machinery and solar panels?

  • Hoses, pumps
  • Water container attached to our tractor brush SPC system

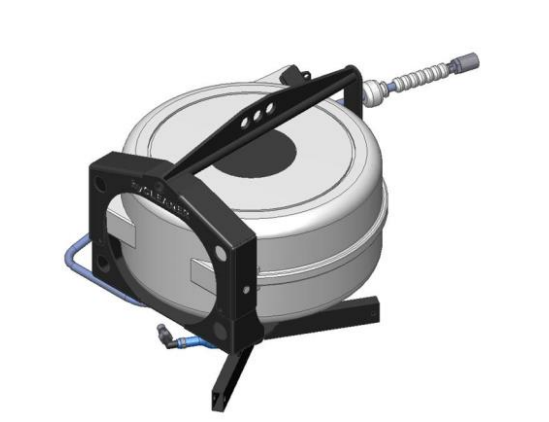

  • How can we manage the long hoses?
  • Hose management is also a significant difficulty in the process. The hoses are very long and they are heavy and they generally need management by a person or tool so that the operator driving the machinery / robot can focus on doing their job correctly.

Person vs Tool

Hose Management Guy

Q7jUOGeX pEUpz h9Tvu4t0uPMxx775e2Gy8VnZ6 xIIpgG3xIo25QgNbhnPqvnde jgfPj70bsxLjZRpN9Qn30BWNeentP49KaTF5zGmOp DvwaPtianCzC78gWmN4kv5KygV4dnbS o gEVsQJzY8

Hose Management done with equipment

uW4bxJmSB p3G3vs19WGyW5rKLAB84NSVUcx jteZVhlN S CGQmGqqc7KpPJ5kHYFvpgFbRtyFQ j9j0oy6PTES7XE1BKksdm17WnclrHOYyu oBgAauktDyVSeMqSEoGvHYF opHuvOPMqrHflTBTMNBgVJ9GRmKi0nX0wgk1qbIfSDCAytNQf fq8AtdVjmMvbDxorkUmGlp trV sgVVw4NPyqB9y6YSM jYWCrTJRPxN90ZLJ8LdY6U1 cA ld39SrSaOYA9ALJ8

Tractor Brush SPC System

gHYhkC4zW7uNQzHZJp 5JNo2hrVtAnSZpYQ8hILQmdRAefvegFCU3m0gp pJXtF ZawWm8S77 cZUekrvfA3xuBKP5IXD90x

Source: https://www.linkedin.com/in/stephen-anderson-001220194/

Array Cleaning
  • How many trips does the solar panel cleaning robot or machinery have to make to clean the row?
  • What is my brush width to panel width ratio?
  • Do I need to do 1 or more trips due to high soiling levels?
  • How much water do I use per trip?
  • How much does my treated water cost?
  • What is my brush width to array width? 1V, 2V, 3H configurations are common
  • What is my water consumption per trip?
  • Can 1 operator clean 2 arrays (rows) at the same time and if so how?
  • What resources do I need to clean multiple arrays?
  • Do I need to move the aerial lift to clean the entire array?
  • It road wide enough if I am using a tractor brush system?
  • Is the road wide enough for an aerial lift
  • Is the road safe enough to drive on with a tractor?

Most Common C&I Solar Panel Dimensions

1840mm x 1030 mm x 31mm including frame

Most Common Utility-Scale Solar Panel Dimensions

2261mm x 1134mm x 35 mm

W uOsEdhs7eKyurmGFeFDg9EFgRBzUhtHDCntjywwrdfKCPThKnmkRhXpxYys96d5Nmv6NTd4ZCmkxFt539fG6guh8WopXR6Hak

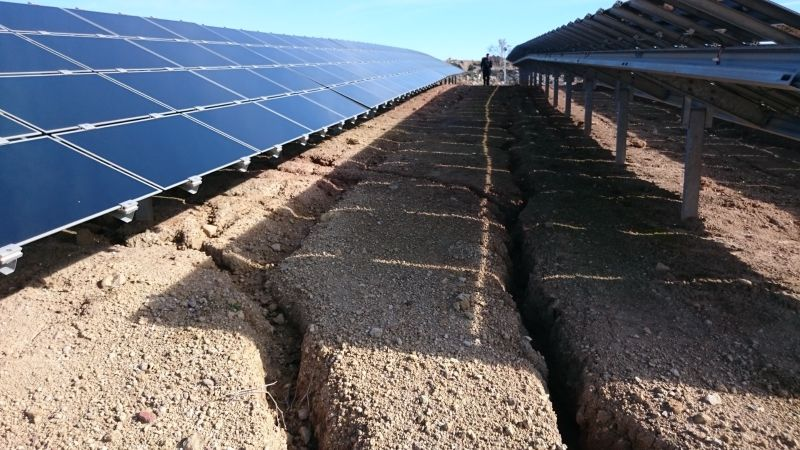

Can a tractor drive over this road?

Gap Management

How can we get the machinery across these gaps?

It is common that solar installations to have gaps within the array or row. How does the solar panel cleaning machinery/robot cross that gap and will it be a problem?

  • How can the equipment pass the gap?
  • What do I do if my equipment cannot pass the gap?
  • Am I reliant on an aerial lift to get the equipment over the gap?
  • If the solar panels are located in a place where my aerial lift cannot reach, how do I get the machinery over the gap?
  • Can I add a board to help my equipment over the gap?
  • What is the maximum gap on inclined rooftops?
  • What is the maximum gap on flat surfaces?
  • Please note that the max gap on flat surfaces is not the same as on inclined surfaces for solar panel cleaning robotic systems.
  • How does gap management vary between machinery types?
lbSwB5YXz8IoGgD0P4BApTy5E7FLcQT88WV1BYjAGfAZcAeoOijnNYDtMyUrwWiA9eBAEms0cIAi1e923C RiHtX8 ed8yhDjgt7EuL9G7HSf5WXuef1eKO4KB5tr2D7dmrzdlRBcv ept3LUYI5kiA

Source: https://www.maxproductionsolarpanelcleaning.com/

Row to Row
  • Moving solar panel cleaning robotics
  • Operator vs Hydraulic Lift
  • How do we move the machinery from one row to the next? Rows or arrays are constant in every solar panel cleaning job and each installation requires that you solve the problem in a tailored way.
  • Do you need special equipment or can an operator get the job done without the special equipment?
  • Are we dependent on a hydraulic lift to move the equipment?
  • Is my machinery light enough to move the equipment without a hydraulic lift?
  • If I am using a tractor brush system, is the road wide enough for my tractor?

wvRjApkO5q 1CpqKRpJaOIdpeVS.vu9 21fhU1PZdLFmf8nNNagottGNa6uemIiysmn6 v85TTdA g52hSw8FebNZkL1fsmfovxpozEoajLXscBmUvV1TdsNObMYkDWK5SRbrH nKm927

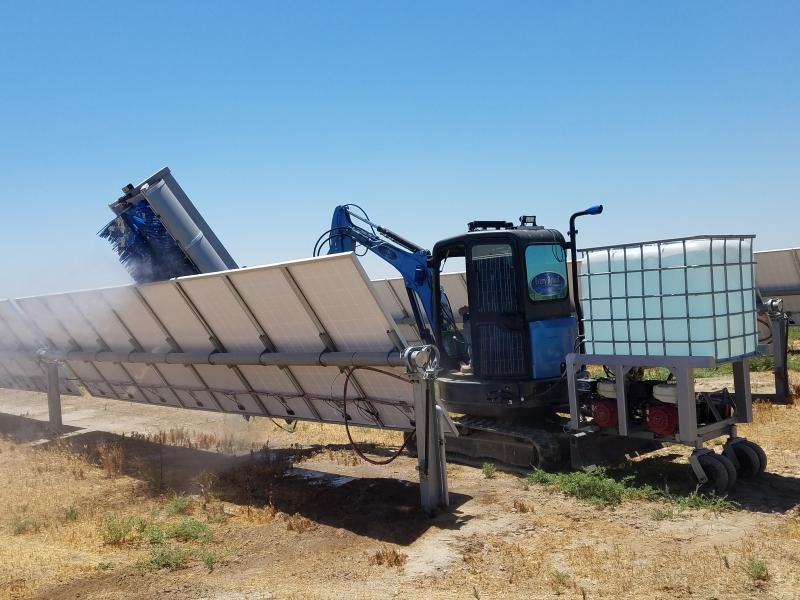

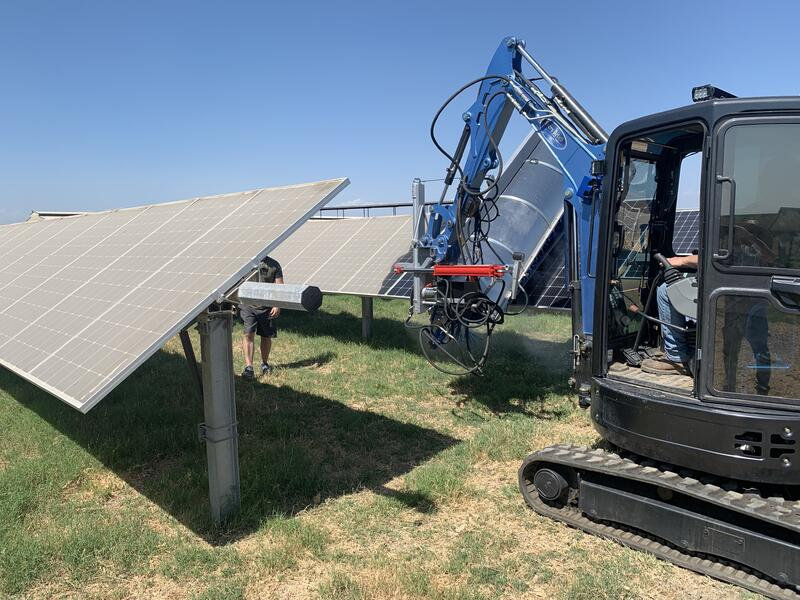

Excavator Brush Solar Panel Cleaning Systems

PhHzN6RaZJVwU9JQ0UldWPMe13YU9W2P59rm Sly4 3q9LBa nVwDNbsW7UXAfalHalateFd91ah2VuCGo 4KjyeTA6PzEC yBL0JWN oYKfpXP5cR gk812dpqLHLlYNaNKWyQrqlSfl qTGBFCPgg

Source: https://www.linkedin.com/in/stephen-anderson-001220194/

Equipment Power Management
  • Battery Powered – If my machinery is battery powered, it is very important that the equipment comes with a battery runout sensor so that the equipment can be moved to a safe location for battery replacement
  • Does my equipment have a battery runout sensor?
  • What happens if my machine runs out of batteries in a place where my aerial lift cannot reach it?
  • Gas – Most tractor brush solar panel cleaning systems are dependent on gas. How do I get gas onsite to be able to work continuously?
  • Power Lines – Some solar panel cleaning equipment is powered by electrical lines. This is common with Lift and Shift SPC systems. How do I get electrical power to my machines and do I need a generator?
  • Solar Power – Solar power is used in Fixed Slider with Docking Station Systems – 100% Dry cleaning. Will my Fixed slider system work if the solar panels on the machine are very dirty?
Departure

This stage is similar to arrival but now always the same

Transportation
  • How can we move the equipment from job site home again or to the next job site?
  • In what condition are the roads and can our vehicle make it back to home base with ease?
  • What kind of skilled labor do I need to move the equipment?
  • What kind of driver’s license does the person need to have?
  • How difficult it to get this kind of driver?
  • What should be my source for this kind of personnel?
  • What are the hourly wages?
  • Are unions an issue?
